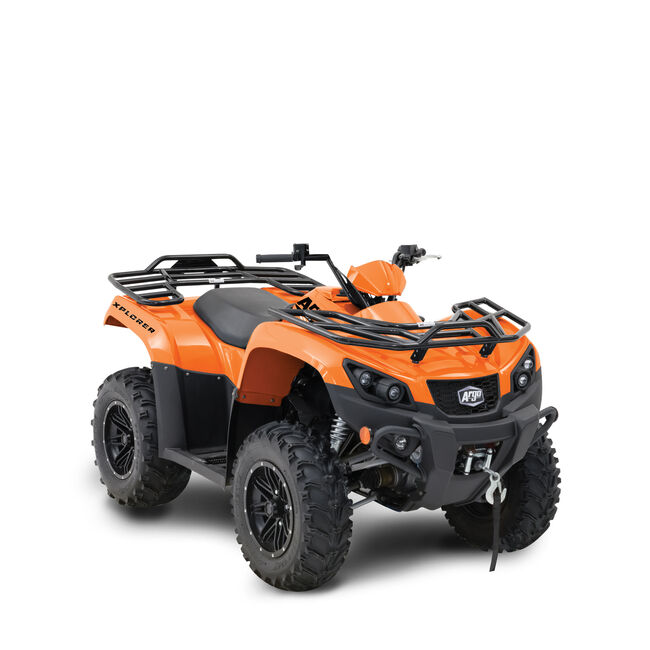

ARGO XPLORER 500 SE 4X4
Introduce your thumb to a throttle.
Power down the smartphone in your hand. Skip it across the water like a flat rock if you’d prefer. It’s time you rev up a new 2024 Xplorer XR 500 SE and let your thumb experience a throttle instead. Hit the trail and learn why outdoor enthusiasts, young and old, love riding and riding and riding.

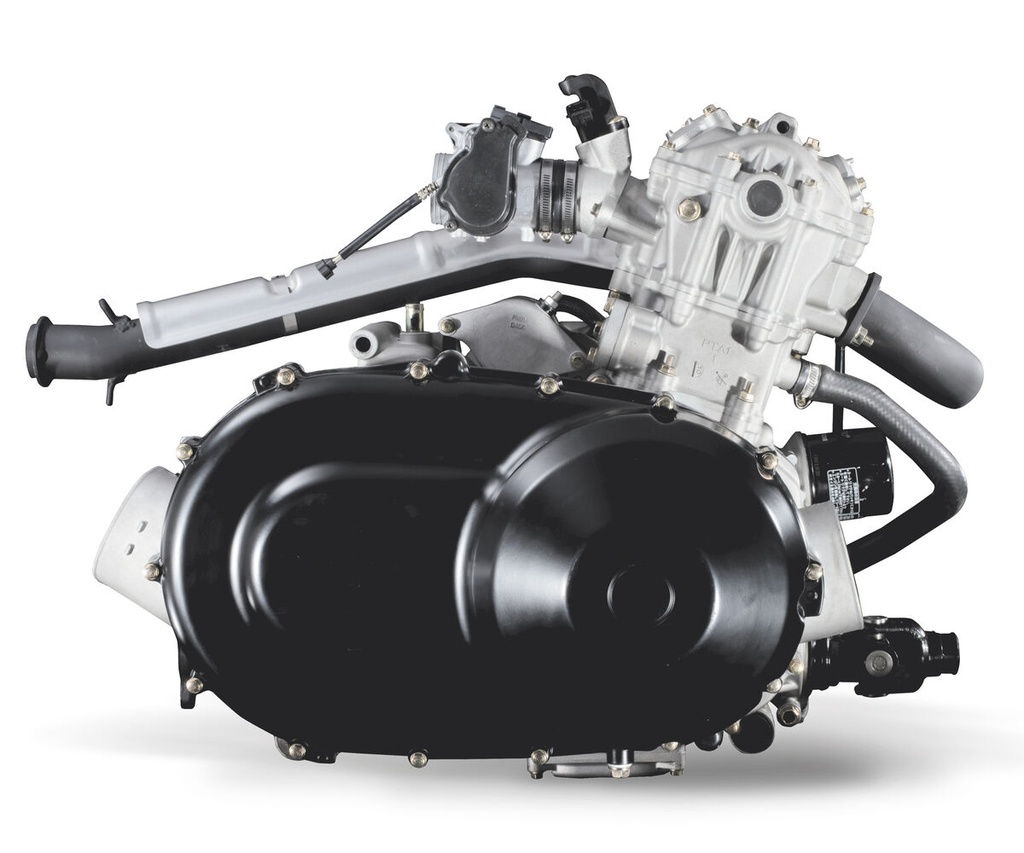

The Xplorer XR 500 SE provides durability and reliability with high-quality standard features, including our powerful 443cc liquid-cooled engine with EFI, performance clutching, engine braking, 24" tires with aluminum rims, a durable 3,000 lb. winch and premium painted plastic body panels. Go make a lifelong connection with reality and mud. No Wifi required.
DISPLACEMENT 443CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 89 X 71.2 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON STANDARD
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL

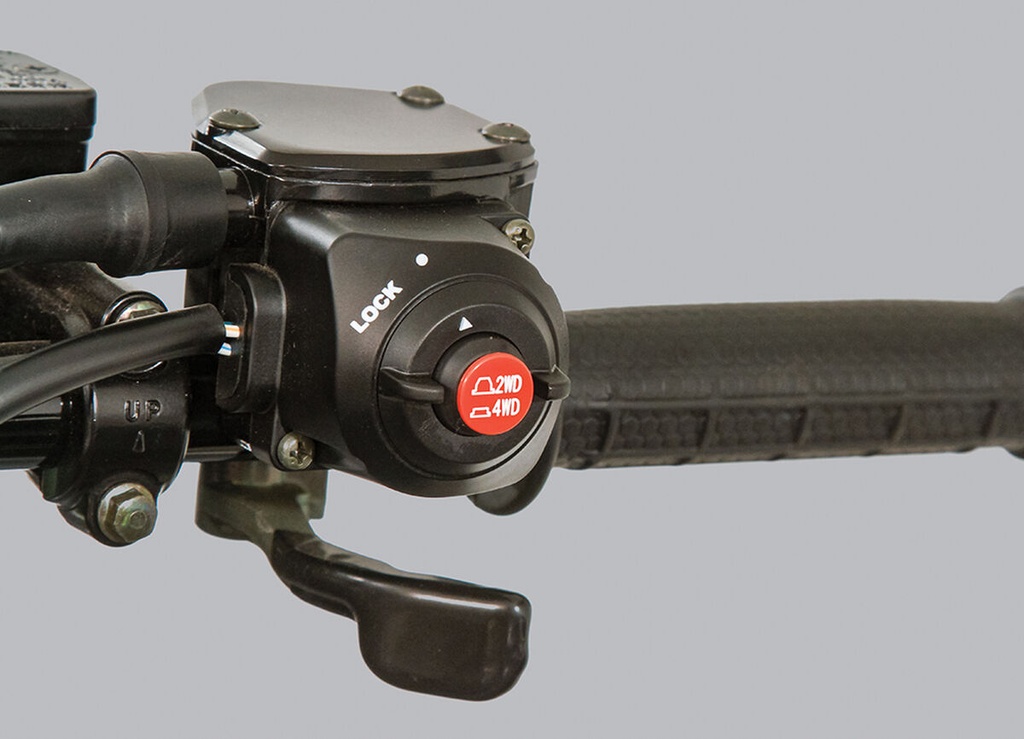

DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 75 IN (1,905 MM)
WIDTH 48.4 IN (1,230 MM)
HEIGHT 47.6 IN (1,210 MM)
SEAT HEIGHT 33.2 IN (843 MM)
GROUND CLEARANCE 10.2 IN (260 MM)
WHEELBASE 48.2 IN (1,225 MM)
TOWING CAPACITY 985 LBS (447 KG)
DRY WEIGHT 627 LBS (284 KG)
WET WEIGHT 670 LBS (304 KG)
FUEL TANK CAPACITY 4.0 GAL (15.0 L)
RIDER CAPACITY 1

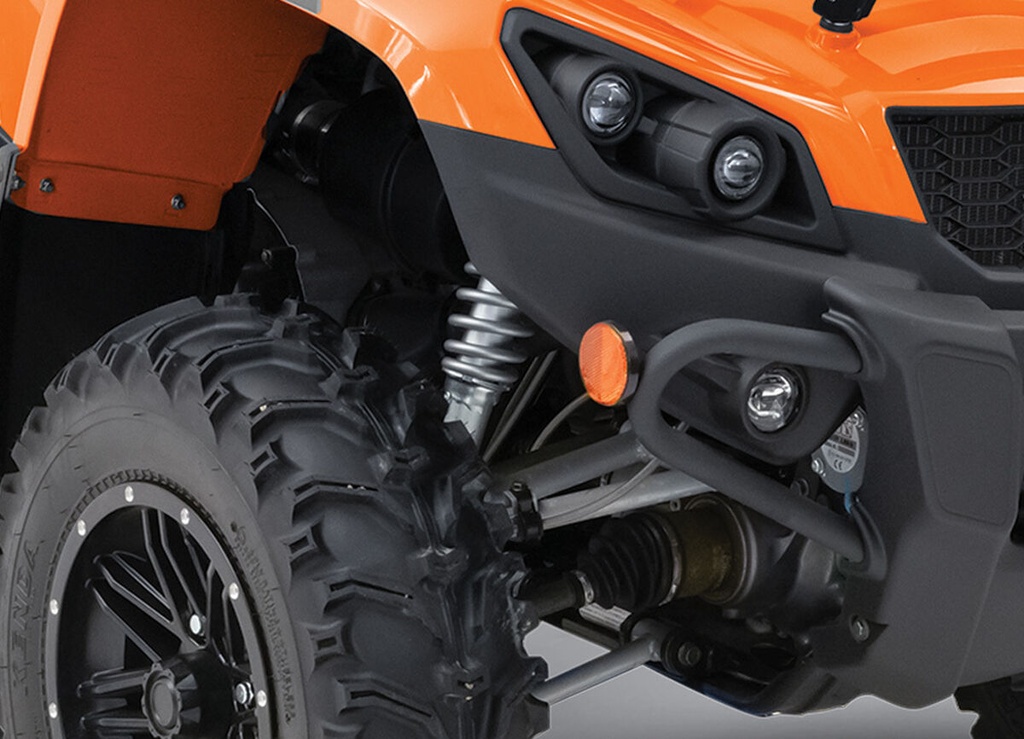

SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL - FRONT 7.5 IN (190 MM)
SUSPENSION TRAVEL - REAR 7.5 IN (190 MM)
BRAKE - FRONT DUAL HYDRAULIC DISC
BRAKE - REAR HYDRAULIC DISC
FOOT BRAKE STANDARD

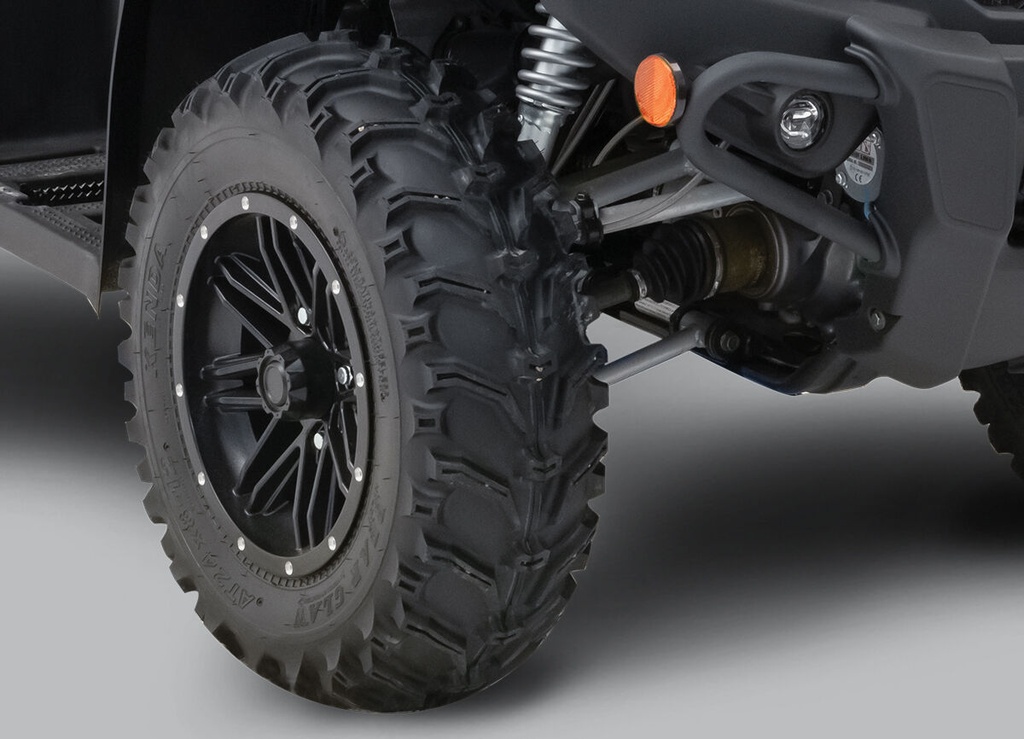

TIRE SIZE (FRONT) AT24X8-12 (KENDA)
TIRE SIZE (REAR) AT24X10-12 (KENDA)
WHEEL RIM ALUMINUM
ELECTRIC POWER STEERING NO
BATTERY MF 18AH

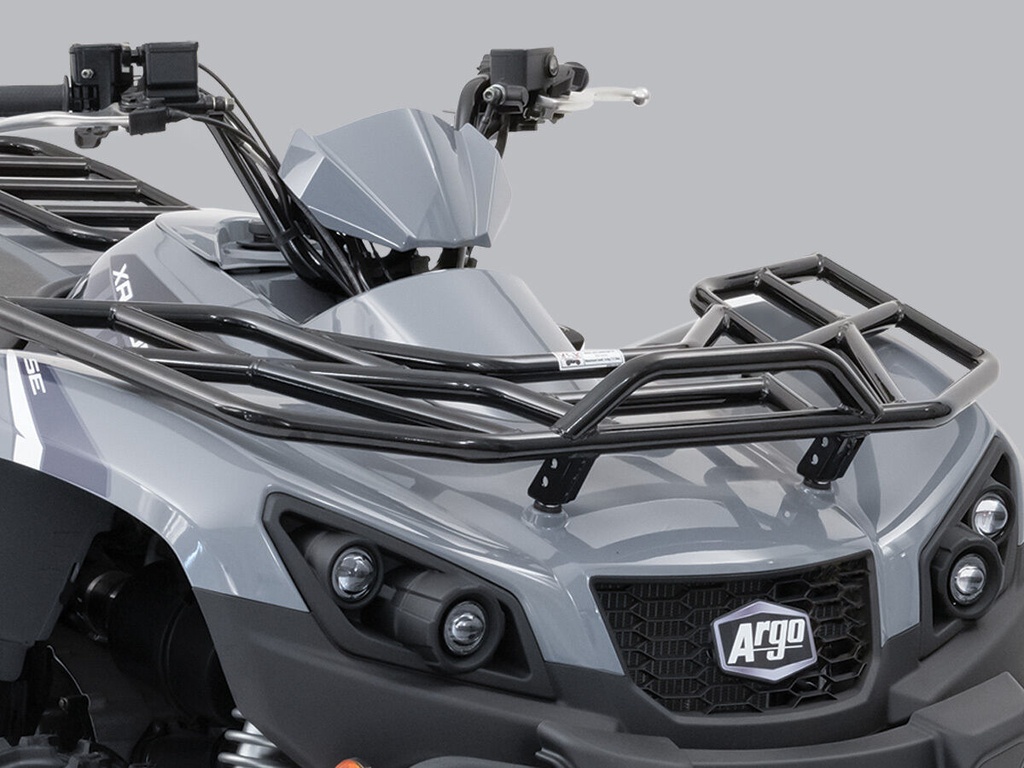

FRONT RACK 75 LB (34 KG)
REAR RACK 150 LB (68 KG)
FRONT BUMPER STANDARD

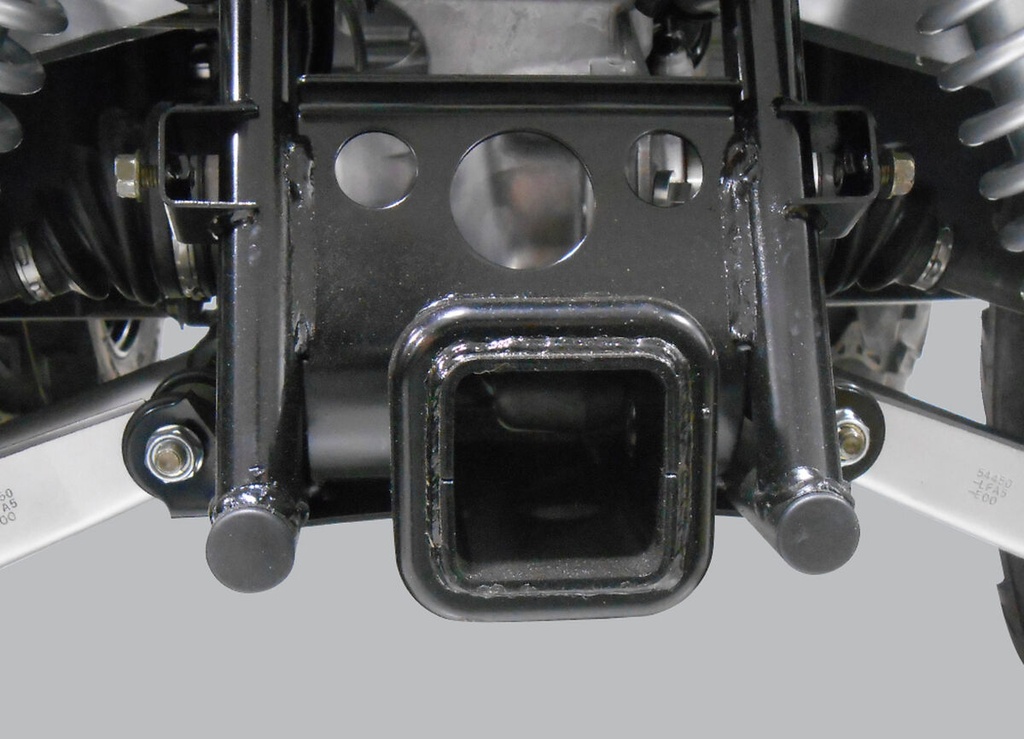

HITCH STANDARD/2" RECEIVER

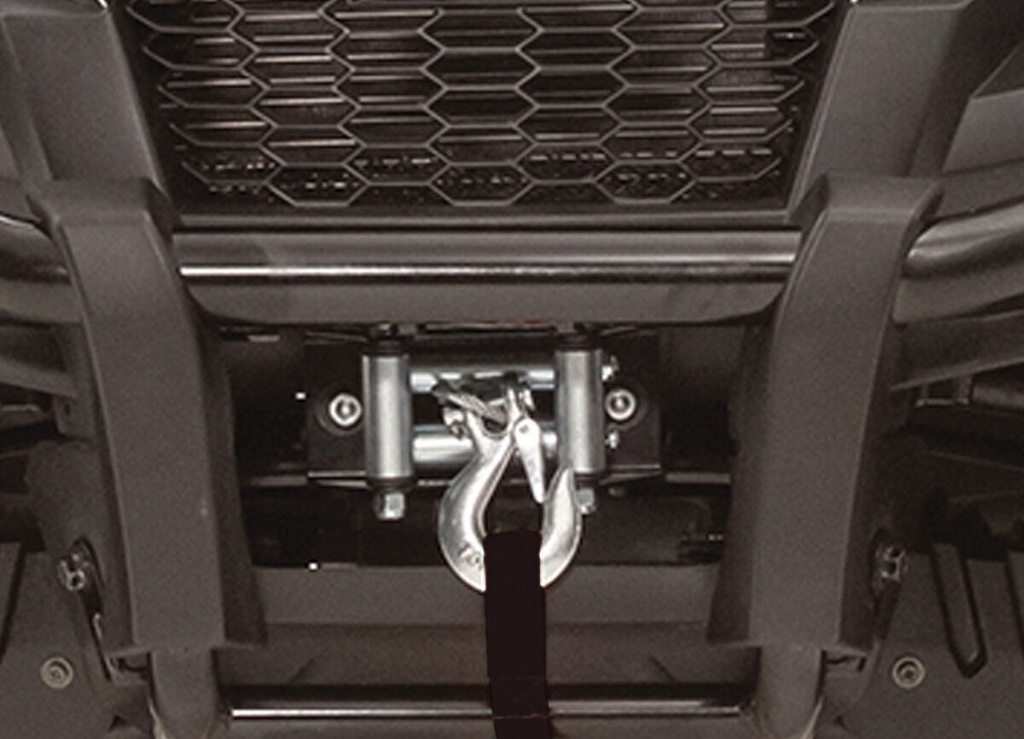

WINCH 3,000 LB WINCH
HAND GUARD N/A
12V CHARGER DC 12V 10A 120W
DAYLIGHT STRIP RUNNING LIGHTS
SKID PLATE PLASTIC
PASSENGER HANDLES NO
PASSENGER BACKREST NO
STORAGE UNDER SEAT
FRONT BRUSH GUARD N/A
REAR BUMPER ACCESSORY
FRONT RACK EXTENTION ACCESSORY
REAR RACK EXTENTION ACCESSORY
USB CHARGING PORT N/A
REAR BOX STORAGE N/A

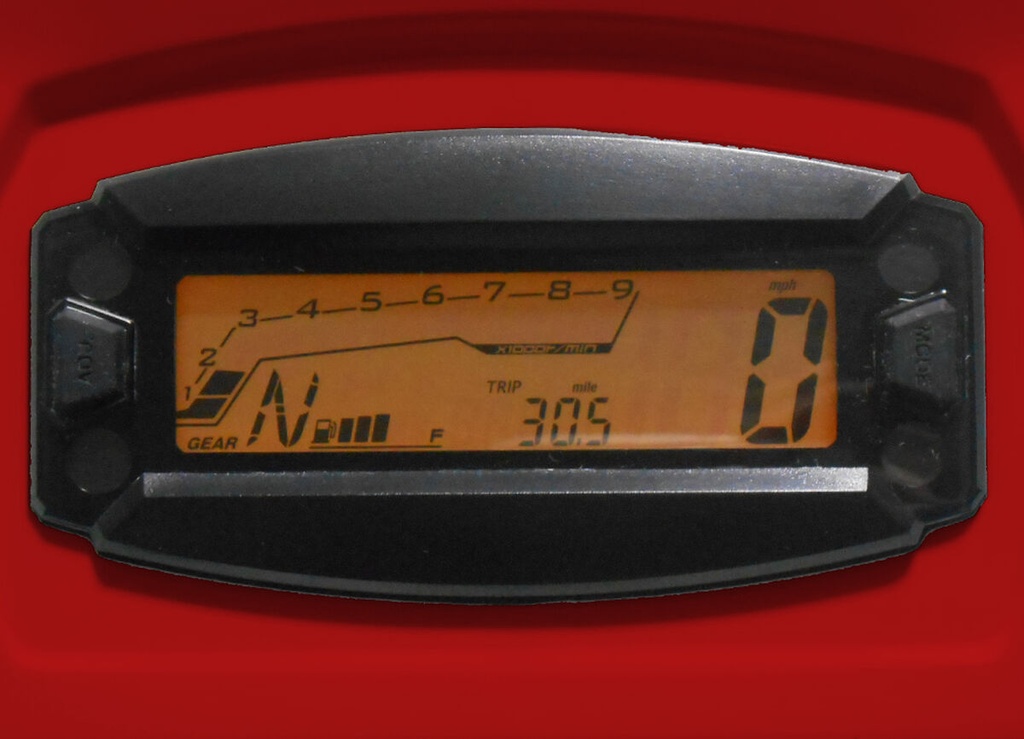

INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
LIGHTING DUAL 12V 35W HIGH/LOW BEAM, SINGLE WITH BRAKE LIGHT
COLOR PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY
PRICE DOES NOT INCLUDE TAX AND FEES
